General Purpose AC/DC EMI Filter

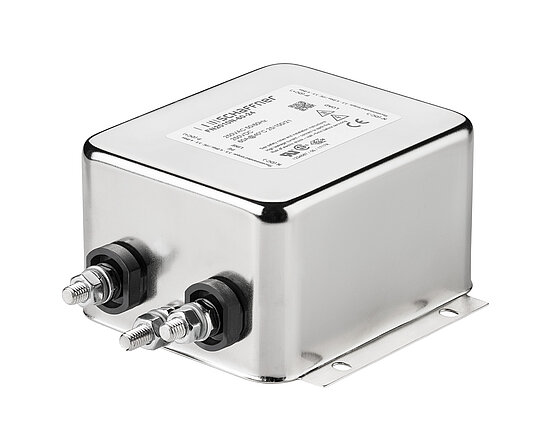

Standard Performance Single-Phase Filters FN2010
General Purpose AC/DC EMI Filter
- Rated currents from 1 to 60 A
- General purpose filtering performance
- Optional medical versions (B type)
- Optional safety versions (A type)
- Optional enhanced performance versions
- Optional DC optimized versions
Features and Benefits
Typical Applications
Electrical and electronic equipment
Consumer goods
Household equipment
Medical equipment
Office automation equipment
Datacom equipment
Technical Specifications
Rated voltage*
250 VAC, 50/60 Hz
250 VDC
Operating frequency
DC to 400 Hz
Flammability corresponding to
Laces for -07 version: UL 94 VW-1
Terminal plastic for -06/-08 version: UL 94 V-0
Grommet for -07 version: UL 94 V-0
Overvoltage category
II acc. IEC 60664-1
Pollution degree
2 acc. IEC 60664-1
Altitude
2000m (above derating applies)**
Rated currents
1 to 60 A @ 40°C max.
High potential test voltage
P –> N 1100 VDC for 2 sec
P –> PE 2000 VAC for 2 sec (equiv. cap <88 nF)
P –> PE 2550 VDC for 2 sec (equiv. cap >88 nF)
P –> PE 2500 VAC for 2 sec (B types)
Temperature range (operation and storage)
-25 °C to +100 °C (25/100/21)**
Certified to
UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939 (applies to AC and DC applications)
* maximum RMS operating voltage at rated frequency or the maximum DC operating voltage
** for dedicated requests exceeding this specification (e.g. -40 °C or higher altitude) please contact your local Schaffner sales office
