EMC/EMI Filter for PV Inverters

DC Filter FN2200


EMC/EMI Filter for PV Inverters

  • Reduces conducted emissions towards the solar panel
  • Reduces the probability of EMI radiation off the solar panel
  • Helps to prevent pre-mature panel aging because of HF leakage currents
  • Helps to meet international EMC regulations for the entire PV system
  • Most compact standard solution in the industry, optionally available without capacitors to ground (B types)
  • New: up to 2300 A

Features and Benefits

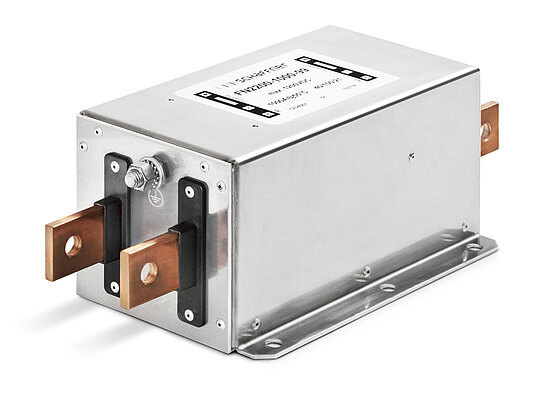

Installed between the PV inverter and the solar panel, FN2200 DC filters help to control conducted emissions on the panel side of the system and therefore reduce the potential for interference radiation off the panel. The filter also protects the solar panel from HF stray and leakage currents which can cause pre-mature aging in the PV modules.

Typical Applications

FN 2200 are primarily designed for PV inverters. However, they can potentially also be used in other DC applications within published specifications, like UPS, DC motor drives, or DC quick chargers.

Technical Specifications

Maximum continuous operating voltage

Max. 1200 VDC

Operating frequency

DC

Rated currents

25 to 2300 A @ 55°C

High potential test voltage

P –> E 3600 VDC for 2 sec

P –> P 3000 VDC for 2 sec

Protection category

IP 20 (25 to 150 A types)

IP 00 (250 to 2300 A types)

Overload capability

4x rated current at switch on,

1.5x rated current for 1 minute, once per hour

Temperature range (operation and storage)

-40°C to +100°C (40/100/21)

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

Flammability corresponding to

UL 94 V-2 or better

×
