A test inspect & cleaning kit, ideal for low to modest volume on MPO / MTP™, LC, SC and all fiber types. Inexpensive with good MPO tester accuracy.
MPO test, inspection & cleaning applications
- Optical power at 28 calibrated λ, -40 to +15 dBm range.
- Optical loss on SM fiber at 1310 / 1550 nm, 40 dB range.
- Optical loss on MM fiber 850 / 1300 nm, 20 dB (@ 62.5um) range, EF compliant.
- Loss test automation & reporting with Autotest and KITS™ software.

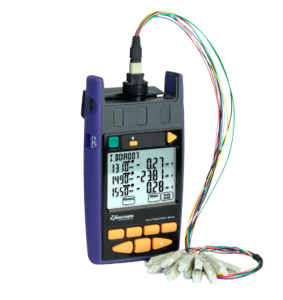

- This meter measures the power from any MPO fiber end, so it does not need re-connecting every time the test fiber is moved.
- Optical 12 fiber Multi-Fiber ID continuity / tone.
- Optical connector end face inspection microscope x200.
- Optical connector cleaning tools & materials.
- Generally meets safety regulations & standards based test procedures.
Connector & battery summary
SC, LC, MPO-PC & MPO-APC interchangeable connector adapters.
Meter accepts MPO, SC & LC, any 1.25mm ferrule. PC & APC polish.
Source accepts SC & LC. PC polish.
Microscope accepts MPO PC/APC, SC, LC. Universal 2.5 & 1.25 mm adapters are also OK for occasional APC use.
Meter 2 x AA alkaline. Run time >1000 hours. Micro USB pwr /charging.
Source 2 x AA alkaline. Run time >80 hours. Micro USB pwr /charging.
Microscope 1 x AAA alkaline. Run time >300 hr. Micro-USB power.
We gladly adjust kits to meet your exact needs.
A suitable MPO breakout cable is needed for this kit.
Alternative: Video microscope
Please enquire for 16/32 ribbon MPO
